Batch Rotary Kiln Pyrolysis Plant
Features

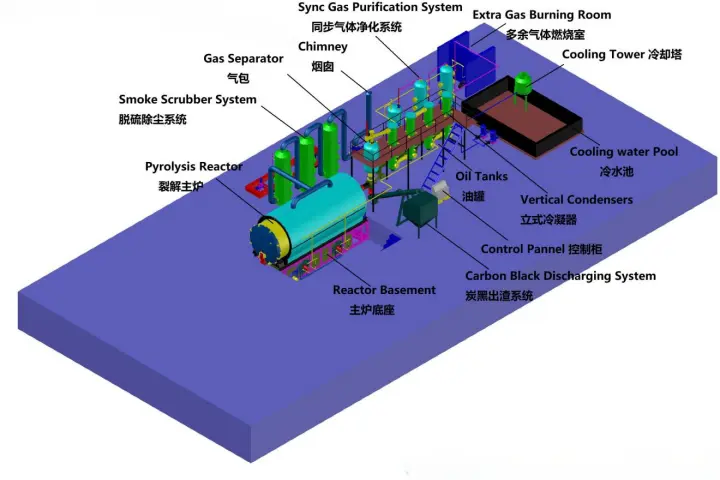

| 1 | Feeding system | 8 | Cooling Tower |
| 2 | Pyrolysis Reactor | 9 | Extra Gas burning Room |
| 3 | Reactor Basement and Bruning Room | 10 | Sync Gas Purifying System |
| 4 | Gas Separator | 11 | Water Seal |
| 5 | Condensers | 12 | Smoke Clean System |
| 6 | Oil Tanks | 13 | Chimney |
| 7 | Carbon Black Discharging System | 14 | Control Cabinet |

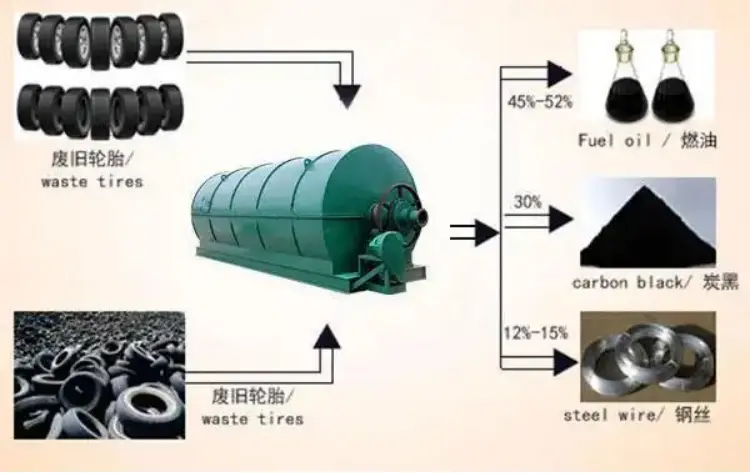

Working Process
1. Feeding
Send solid waste raw materials into the pyrolysis reactor through the auto-feeder or manual feeding, close the furnace door and heat the reactor, and keep pyrolyzing waste raw materials in the absence of oxygen.
2. Pyrolysis
After the pyrolysis reactor is continuously heated to a certain temperature, the waste raw materials will be pyrolyzed to produce fuel oil carbon black and syn-gas.

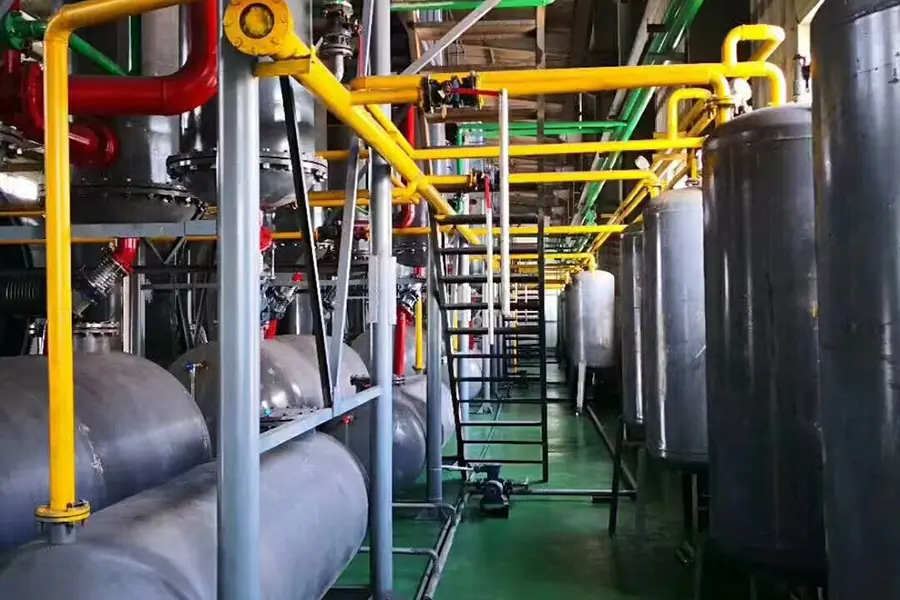

3. Condensation
The oil gas first enters the buffer tank to buffer the flow rate and settle impurities, and then enters the condensation system to fully condense into oil.
4. Exhaust Gas Purification
The non-condensable gas enters the exhaust gas purification system to remove harmful emissions such as H2S, and can be used to heat the pyrolysis reactor after purification,which is energy-saving and environmentally friendly.
5. Flue Gas Purification
The flue gas generated during the pyrolysis process is treated by the flue gas purification system-desulfurization dedust tower, and then discharged up to standard.
6. Carbon Black Slagging
The residual substance(carbon black)in the pyrolysis reactor, is discharged and collected through the carbon black transfer system.
7. Steel Wire Collection
If your raw material is waste tires, when the temperature of the reactor drops below 50°C, use a wire drawing machine to pull out the steel wire in the reactor.
| Item | Raw Materials | Output |
| Tyres | Steel Tyres | 40%~45% |
| Nylon Tyres | ≈40% | |
| Tyres of Bikes etc. | ≈35% | |
| Plastics | HDPE | ≥70% |
| LDPE | 30%~50% | |
| PVC | 20%~30% | |
| ABS | ≈40% | |
| Paper Mixture | Rough Material | ≈15% |
| Washing Material | 23%~26% | |
| PE Material | ≈70% | |
| Cable Skin | PE Cable Skin | ≈85% |
| PVC Cable Skin | ≈25% | |
| Pure Rubber Cable Skin | ≈35% | |
| Telephone Line | ≈50% | |
| Life Garbage | Pure (Plastic bags) | ≈50% |
| Weaves & Handbags | ≈60% | |
| FIshing/safety Net | 45%~50% | |
| Instant noodles bags | ≈40% | |
| Wet Mixture | ≈15% | |
| Soles | Sports Shoes Soles | 27%~33% |
| Black Rubber Soles | ≈35% | |
| Gum-rubber Out-soles | ≈45% | |
| Others | Usual Rubber Tubes | ≈30% |
| Carpets | ≈35% | |
| Aluminum Foil | ≈30% | |
| Car Glass Bead | ≈50% | |
| PP）Beverage Bottle cap | ≈50% |

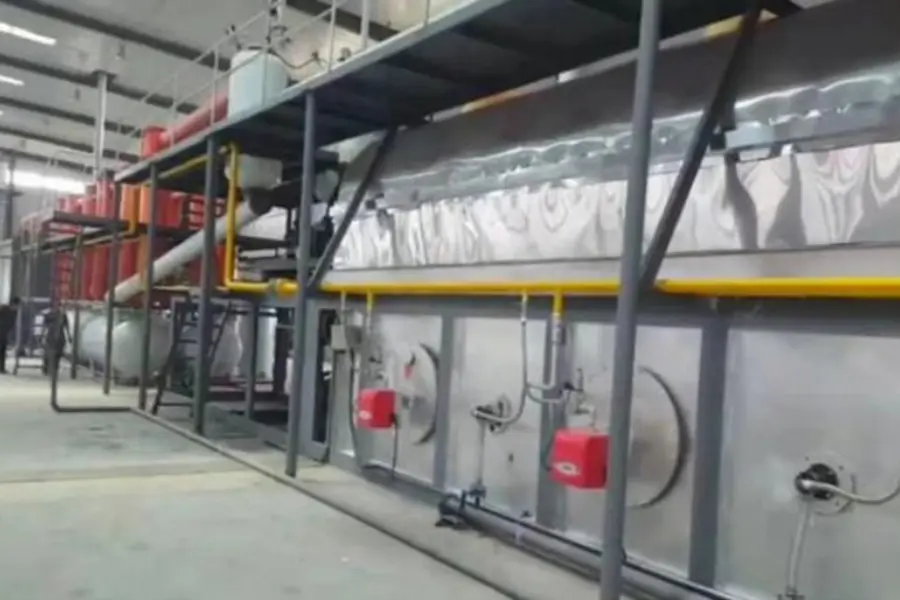

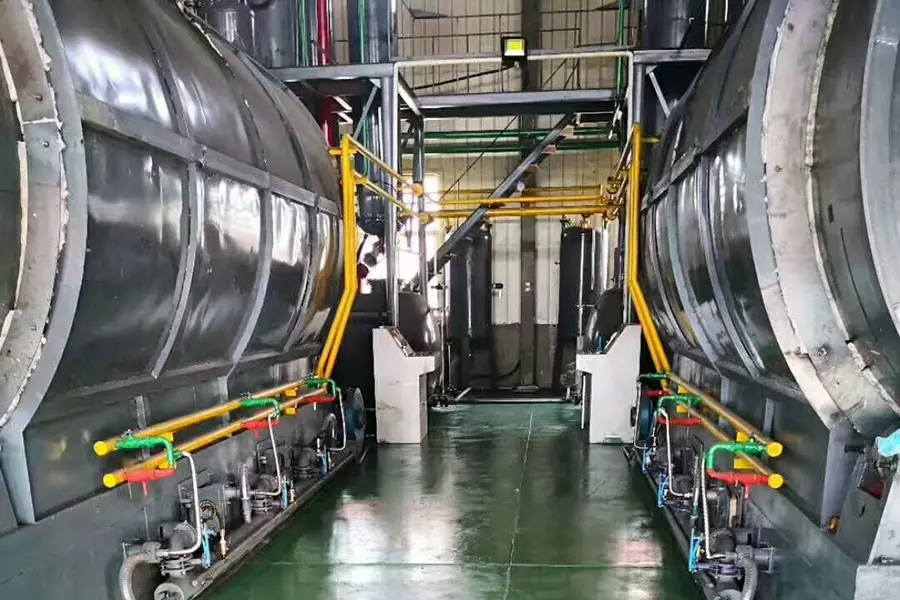

The Features of waste tyre pyrolysis plant
1. The complete set of waste tyre pyrolysis plant produces no smoke and smell with favorable effects of environmental protection.
2. The pressure release device operates through water circulation, which greatly improves the security of the system.
3. The release of pressure during the production dramatically increases the output within certain time and meanwhile improves the quality of oil.
4. The heating system adopts hot air heating technology, which improves the safety performance of production and heating efficiency. And the syn-gas produced in the waste tire pyrolysis process can be recycled to heat tyre pyrolysis reactor to save operation cost.
5. High efficiency fuel gas heating system. When the heated gas reaches 150 during pyrolysis process, a large amount of gas will be generated.
6. Whole tyre feed, no need to break for batch waste tyre pyrolysis plant for sale, which reduces cost.

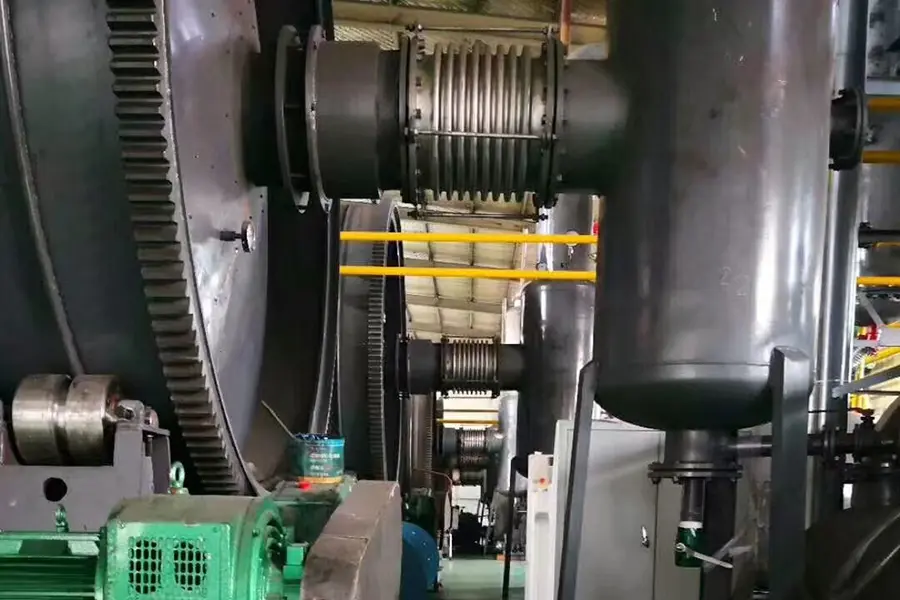

TECHNICAL DATE
| Model | 2600-6600 |
| Reactor specification | Diameter 2600mm Length 6600mm;Q345R 16MM Thickness with coil pipe cooling system |
| Working Power | 17KW |
| Working type | Batch |
| capacity | 10 tons waste tyres per batch |
| Final products | Fuel oil & Carbon black |
| Shipment | 2*40 HQ containers |
| Delivery time | Within about 20 working days after receiving deposit |
| Payment terms | 50% deposit prepaid by T/T, balance will paid before shipment |

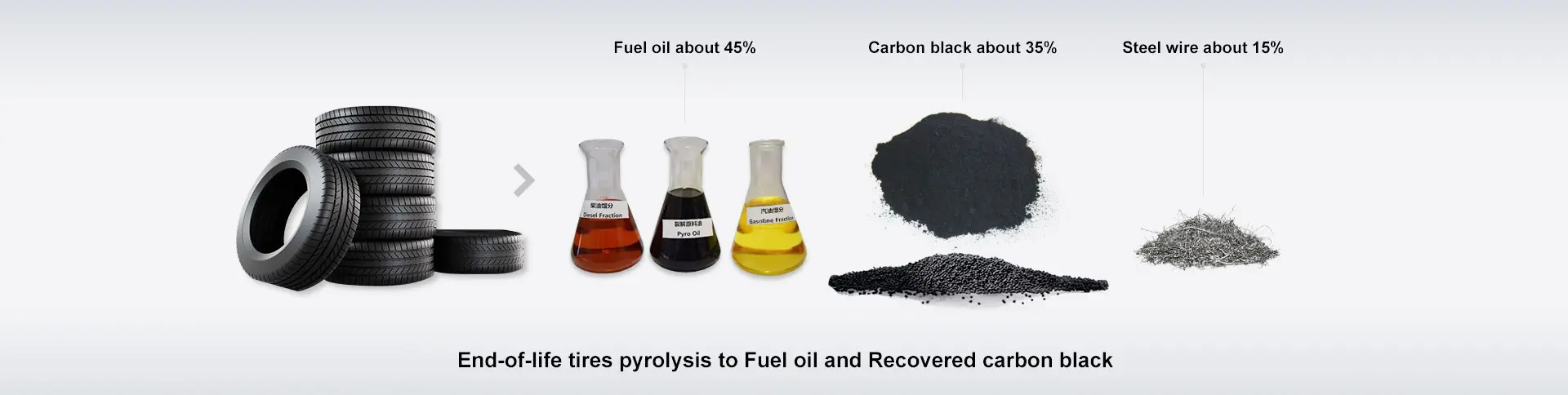

APPLICATION
When the whole process is over, we can get end-products that have a wide range of applications. For example, the pyrolysis oil can be widely used as fuel oil in industries such as steel and iron and boiler factories, ceramics, power or chemical industries or hotels, restaurants etc. or used for generators to get electricity. The carbon black can be used for making construction bricks with clay, or used as fuel. The steel wire can be sold directly or recycled to produce new steel products.
